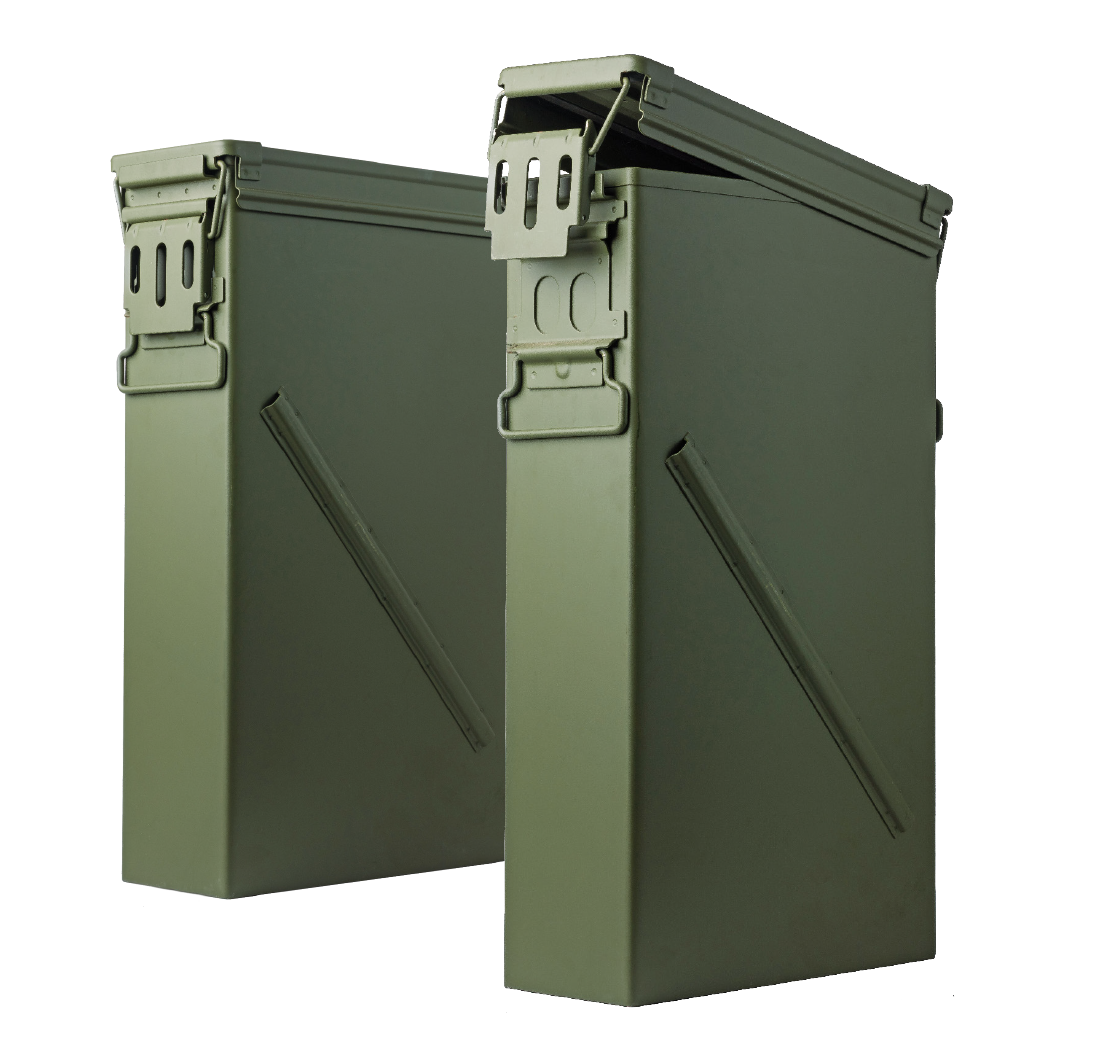

SPECIFICATIONS:
|
|
|---|---|
|
INTERNAL LENGTH
|
11” - 11.0625”
|
|
INTERNAL DEPTH
|
18.3125 - 18.375”
|
|
INTERNAL WIDTH
|
5.500” - 5.5625”
|
|
EXTERNAL LENGTH
|
12.362” MAX
|
|
EXTERNAL WIDTH
|
6.36” MAX
|
|
EXTERNAL HEIGHT
|
18.826” MAX
|
|
US ARMY DRAWING NUMBER
|
13027662
|
|
SPECIFICATION
|
MIL-DTL-32320
|
|
COATING
|
POWDER COATED
|
|
PRE-TREATMENT
|
ZINC PHOSPHATE TO TT-C-490
|
|
COLOUR
|
ANY RAL OR FED STD COLOR
|
|
GASKET SPEC
|
ASTM D2000 M2BC 517 A14 B14 C12 F17
|
|

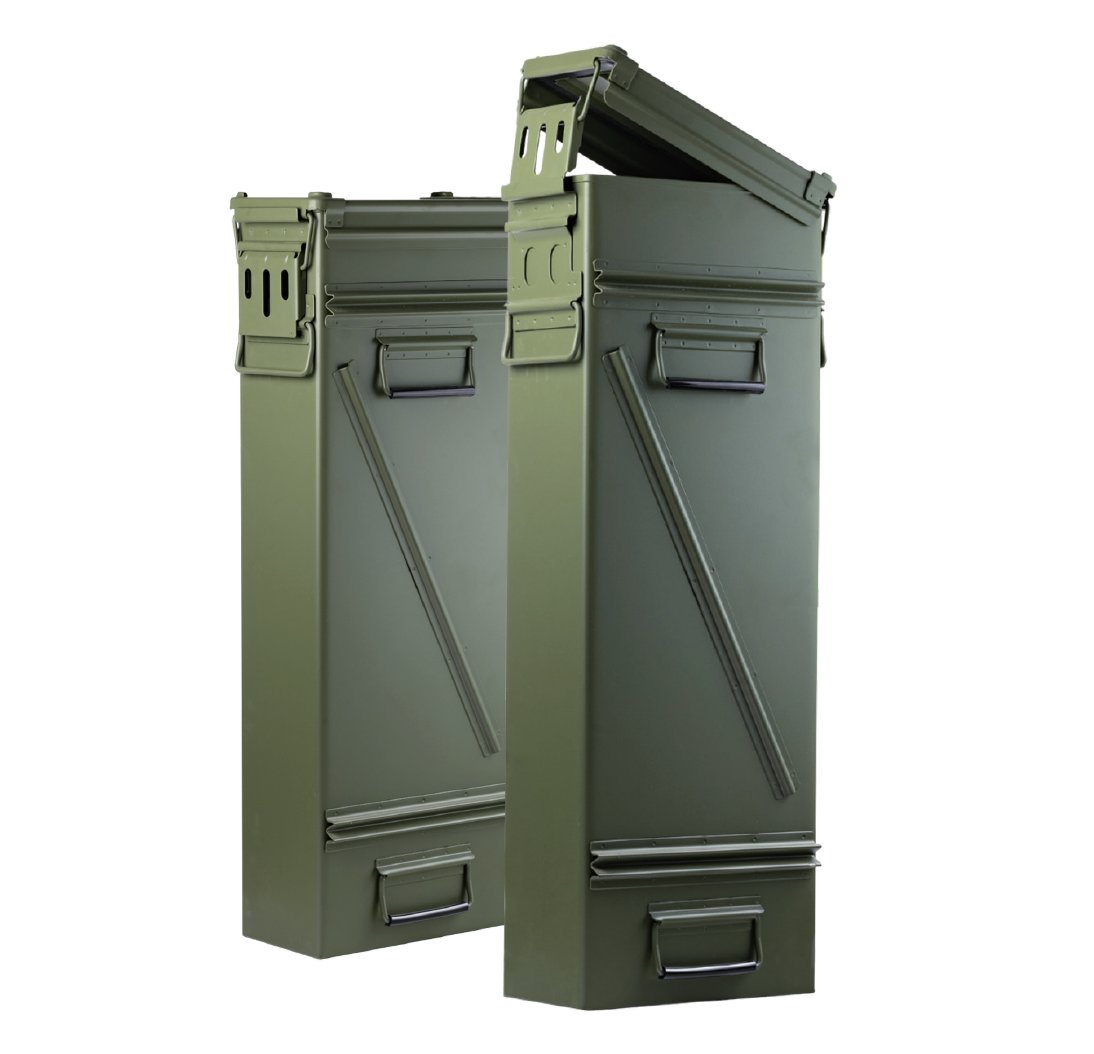

SPECIFICATIONS:
|
|
|---|---|
|
INTERNAL LENGTH
|
11” - 11.0625”
|
|
INTERNAL DEPTH
|
18.3125 - 18.375”
|
|
INTERNAL WIDTH
|
5.5625” - 5.578125”
|
|
EXTERNAL LENGTH
|
12.03125” MAX
|
|
EXTERNAL WIDTH
|
6.09375” MAX
|
|
EXTERNAL HEIGHT
|
19.0625” MAX
|
|
US ARMY DRAWING NUMBER
|
9354466
|
|
SPECIFICATION
|
MIL-DTL-32320
|
|
COATING
|
POWDER COATED
|
|
PRE-TREATMENT
|
ZINC PHOSPHATE TO TT-C-490
|
|
COLOUR
|
ANY RAL OR FED STD COLOR
|
|
GASKET SPEC
|
ASTM D2000 M4AA 407 A13 B13 C12 F17
|
|

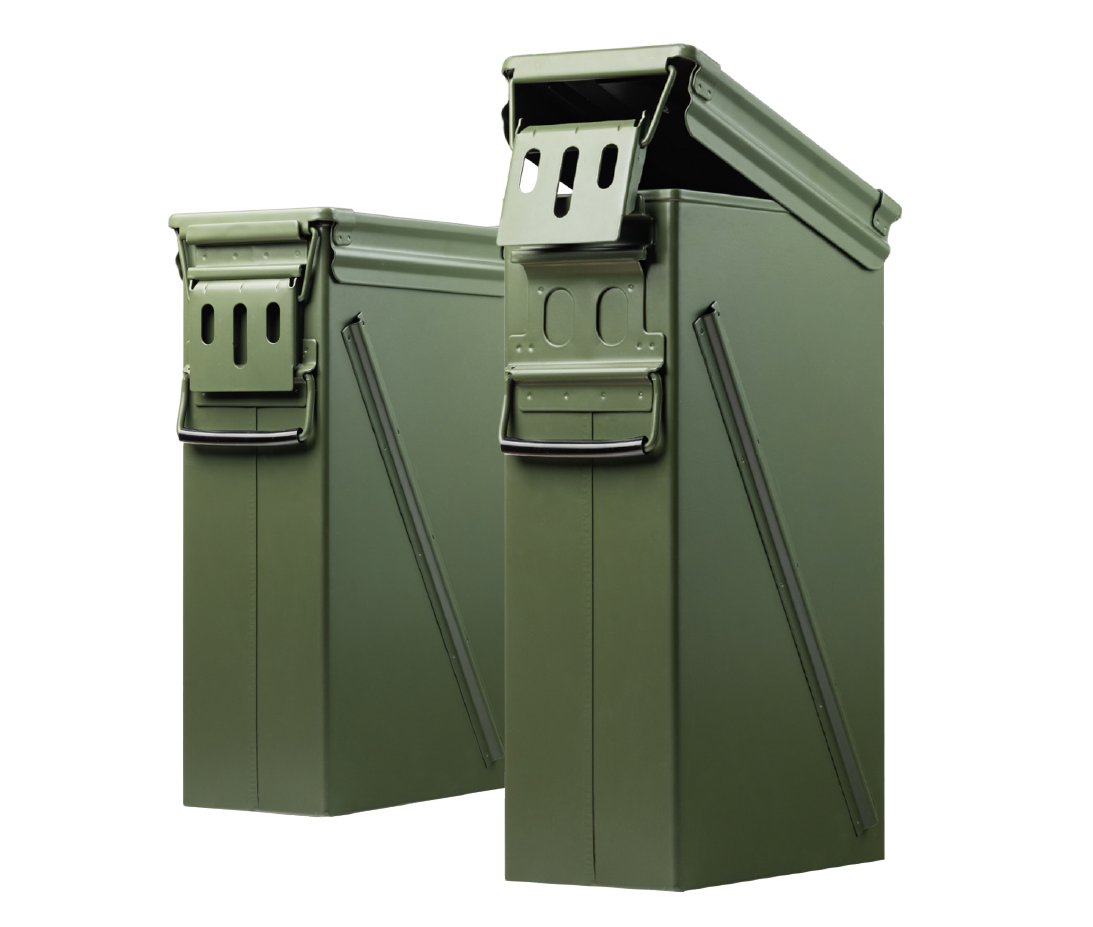

SPECIFICATIONS:
|
|
|---|---|
|
INTERNAL LENGTH
|
12.870” - 12.93”
|
|
INTERNAL DEPTH
|
22.365” - 22.428”
|
|
INTERNAL WIDTH
|
5.009” - 5.039”
|
|
EXTERNAL LENGTH
|
14.34” MAX
|
|
EXTERNAL WIDTH
|
5.72” MAX
|
|
EXTERNAL HEIGHT
|
22.90” MAX
|
|
US ARMY DRAWING NUMBER
|
12944511
|
|
SPECIFICATION
|
MIL-DTL-32320
|
|
COATING
|
POWDER COATED
|
|
PRE-TREATMENT
|
ZINC PHOSPHATE TO TT-C-490
|
|
COLOUR
|
ANY RAL OR FED STD COLOR
|
|
GASKET SPEC
|
ASTM D2000 M2BC 517 A14 B14 C12 F17
|
|

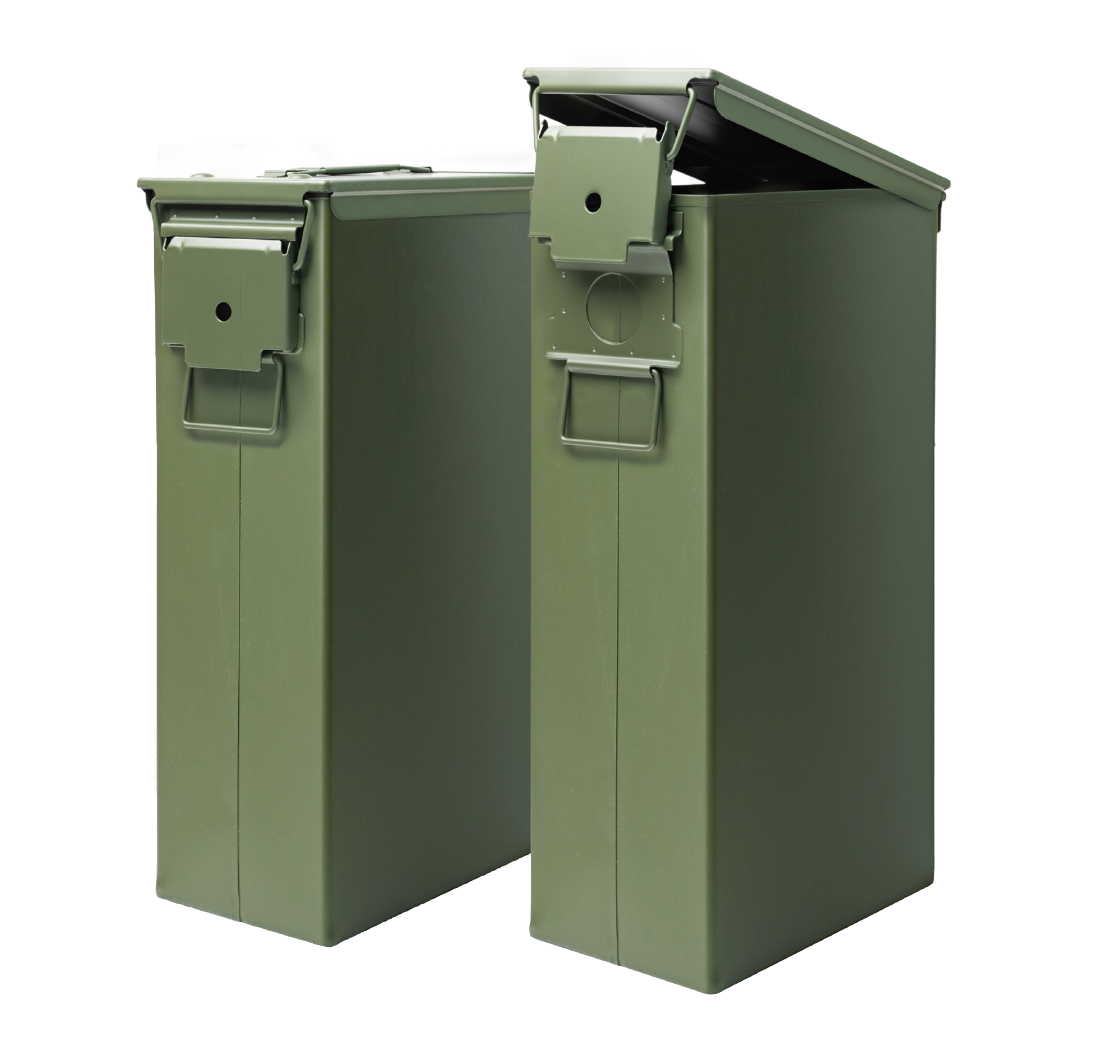

SPECIFICATIONS:
|
|
|---|---|
|
INTERNAL LENGTH
|
11.00” MIN
|
|
INTERNAL DEPTH
|
21.267” MIN
|
|
INTERNAL WIDTH
|
5.500” MIN
|
|
EXTERNAL LENGTH
|
12.362” MAX
|
|
EXTERNAL WIDTH
|
6.36” MAX
|
|
EXTERNAL HEIGHT
|
31.78” MAX
|
|
US ARMY DRAWING NUMBER
|
12577569
|
|
SPECIFICATION
|
MIL-DTL-32320
|
|
COATING
|
POWDER COATED
|
|
PRE-TREATMENT
|
ZINC PHOSPHATE TO TT-C-490
|
|
COLOUR
|
ANY RAL OR FED STD COLOR
|
|
GASKET SPEC
|
ASTM D2000 M2BC 517 A14 B14 C12 F17
|

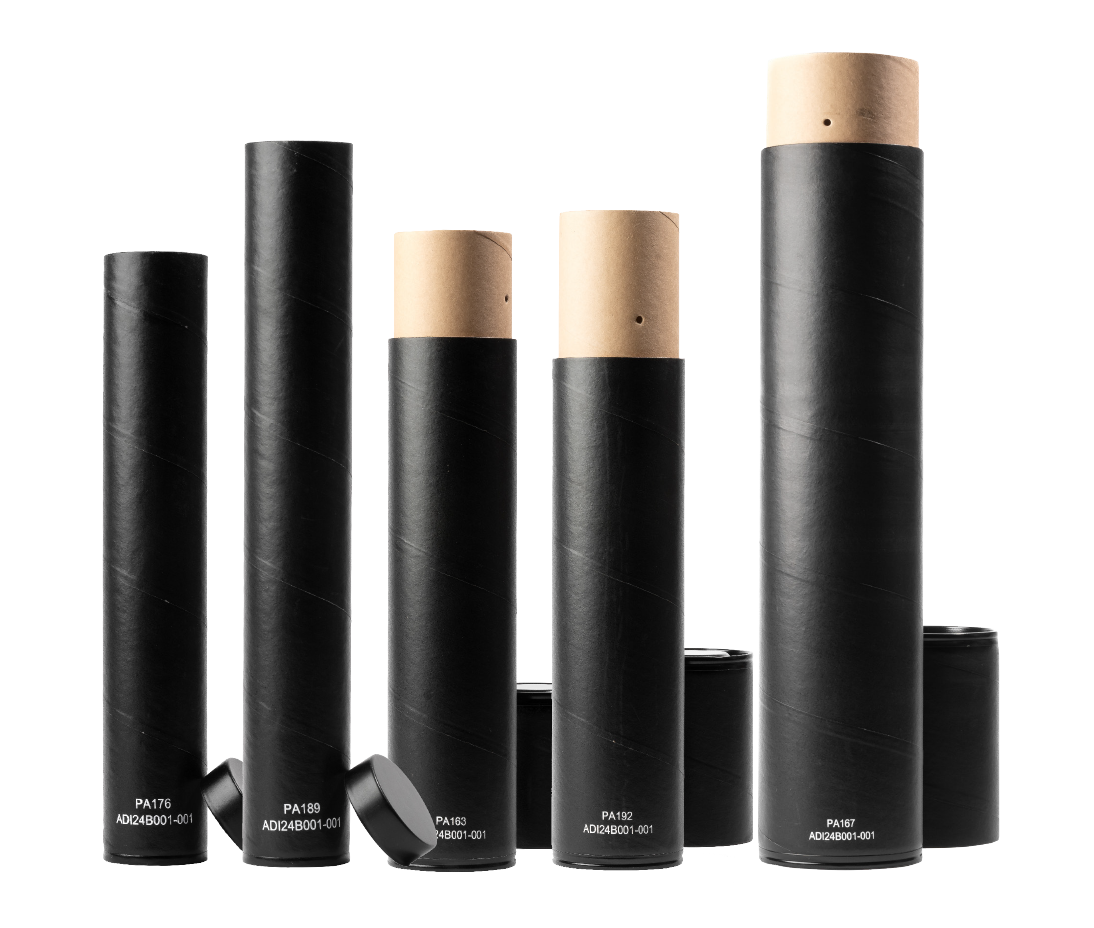

Our range of spiral wound fiber mortar containers includes 60, 81 and 120mm solutions.
We produce both bitumen impregnated and polylaminate styles including:
|
|
60mm – PA176, PA181, PA189
|
|---|
|
81mm – PA163, PA192 , PA193
|
|
120mm – PA167
|
|
Our fiber wound tubes fully comply with MIL-DTL-2439
|
