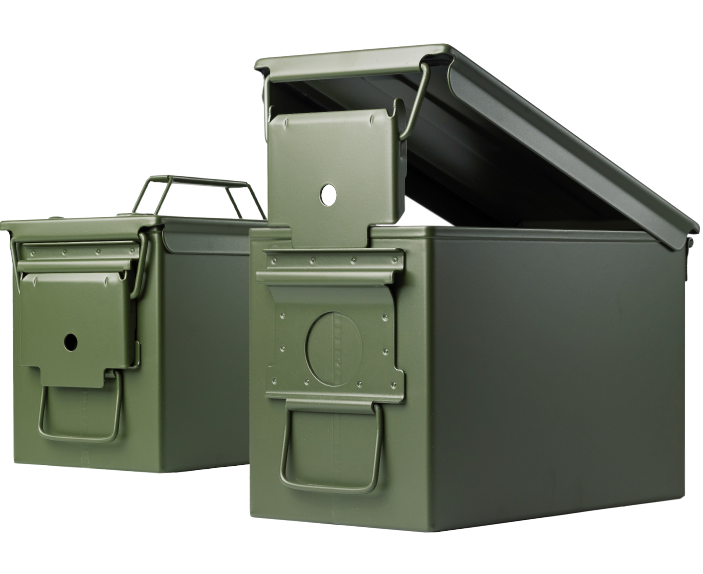

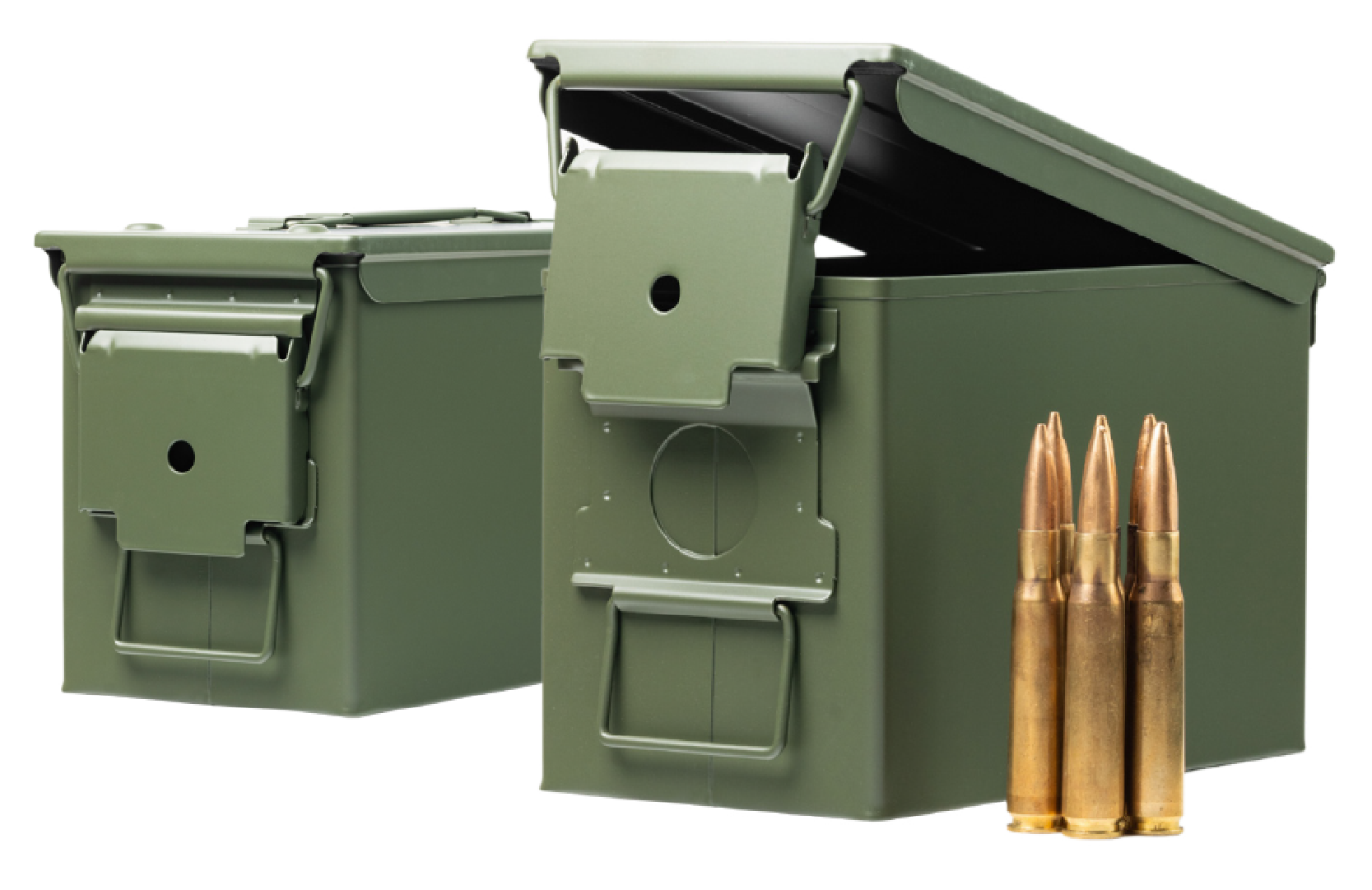

SPECIFICATIONS:
|
|
|---|---|
|
INTERNAL LENGTH
|
11.031” MIN
|
|
INTERNAL DEPTH
|
6.796” MIN
|
|
INTERNAL WIDTH
|
5.578” MIN
|
|
EXTERNAL LENGTH
|
12.031” MAX
|
|
EXTERNAL WIDTH
|
6.093” MAX
|
|
EXTERNAL HEIGHT
|
7.5” MAX
|
|
US ARMY DRAWING NO.
|
7553296
|
|
SPECIFICATION
|
MIL-DTL-3060
|
|
COATING
|
POWDER COATED
|
|
PRE-TREATMENT
|
ZINC PHOSPHATE TO TT-C-490
|
|
COLOUR
|
ANY RAL OR FED STD COLOR
|
|
GASKET SPEC
|
ASTM D2000 M4AA 407 A13 B13 C12 F17
|
|
SPECIFICATIONS:
|
|
|---|---|
|
INTERNAL LENGTH
|
11.031” MIN
|
|
INTERNAL DEPTH
|
6.796” MIN
|
|
INTERNAL WIDTH
|
5.578” MIN
|
|
EXTERNAL LENGTH
|
12.031” MAX
|
|
EXTERNAL WIDTH
|
6.093” MAX
|
|
EXTERNAL HEIGHT
|
7.5” MAX
|
|
US ARMY DRAWING NO.
|
13032542
|
|
SPECIFICATION
|
MIL-DTL-3060
|
|
COATING
|
POWDER COATED
|
|
PRE-TREATMENT
|
ZINC PHOSPHATE TO TT-C-490
|
|
COLOUR
|
ANY RAL OR FED STD COLOR
|
|
GASKET SPEC
|
ASTM D2000 M4AA 407 A13 B13 C12 F17
|
|

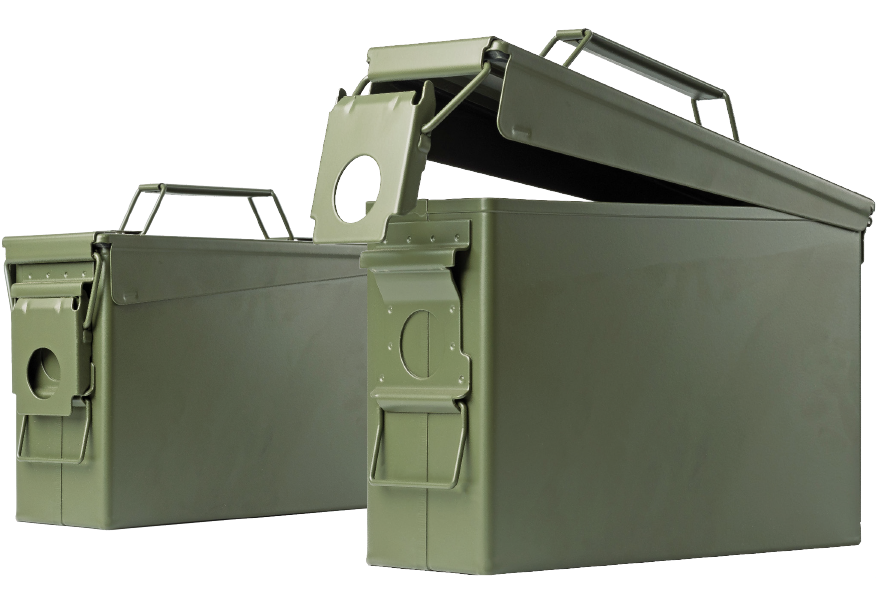

SPECIFICATIONS:
|
|
|---|---|
|
INTERNAL LENGTH
|
10.109” MIN
|
|
INTERNAL DEPTH
|
6.562” MIN
|
|
INTERNAL WIDTH
|
3.453” MIN
|
|
EXTERNAL LENGTH
|
11” MAX
|
|
EXTERNAL WIDTH
|
3.81” MAX
|
|
EXTERNAL HEIGHT
|
7.25” MAX
|
|
US ARMY DRAWING NO.
|
7553315
|
|
SPECIFICATION
|
MIL-DTL-3060
|
|
COATING
|
POWDER COATED
|
|
PRE-TREATMENT
|
ZINC PHOSPHATE TO TT-C-490
|
|
COLOUR
|
ANY RAL OR FED STD COLOR
|
|
GASKET SPEC
|
ASTM D2000 M4AA 407 A13 B13 C12 F17
|
|

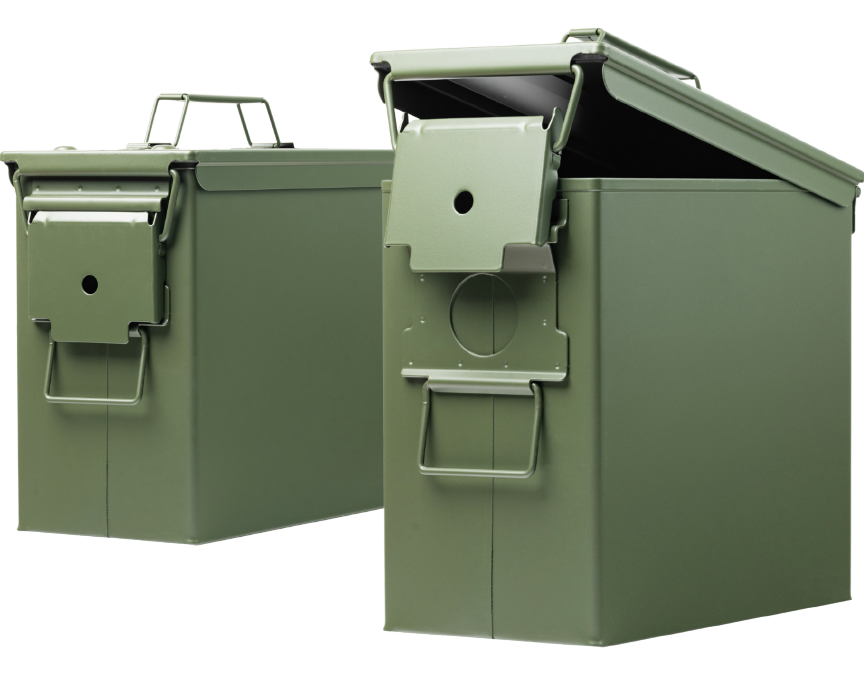

SPECIFICATIONS:
|
|
|---|---|
|
INTERNAL LENGTH
|
11.031” MIN
|
|
INTERNAL DEPTH
|
9.609” MIN
|
|
INTERNAL WIDTH
|
5.578” MIN
|
|
EXTERNAL LENGTH
|
12.031” MAX
|
|
EXTERNAL WIDTH
|
6.093” MAX
|
|
EXTERNAL HEIGHT
|
10.312” MAX
|
|
US ARMY DRAWING NO.
|
8865541
|
|
SPECIFICATION
|
MIL-DTL-3060
|
|
COATING
|
POWDER COATED
|
|
PRE-TREATMENT
|
ZINC PHOSPHATE TO TT-C-490
|
|
COLOUR
|
ANY RAL OR FED STD COLOR
|
|
GASKET SPEC
|
ASTM D2000 M4AA 407 A13 B13 C12 F17
|
|
SPECIFICATIONS:
|
|
|---|---|
|
INTERNAL LENGTH
|
11.907” MIN
|
|
INTERNAL DEPTH
|
8.251” MIN
|
|
INTERNAL WIDTH
|
6.766” MIN
|
|
EXTERNAL LENGTH
|
12.906” MAX
|
|
EXTERNAL WIDTH
|
7.297“ MAX
|
|
EXTERNAL HEIGHT
|
8.906” MAX
|
|
US ARMY DRAWING NO.
|
9396178
|
|
SPECIFICATION
|
MIL-C-70628
|
|
COATING
|
POWDER COATED
|
|
PRE-TREATMENT
|
ZINC PHOSPHATE TO TT-C-490
|
|
COLOUR
|
ANY RAL OR FED STD COLOR
|
|
GASKET SPEC
|
ASTM D2000 M4AA 407 A13 B13 C12 F17
|
|

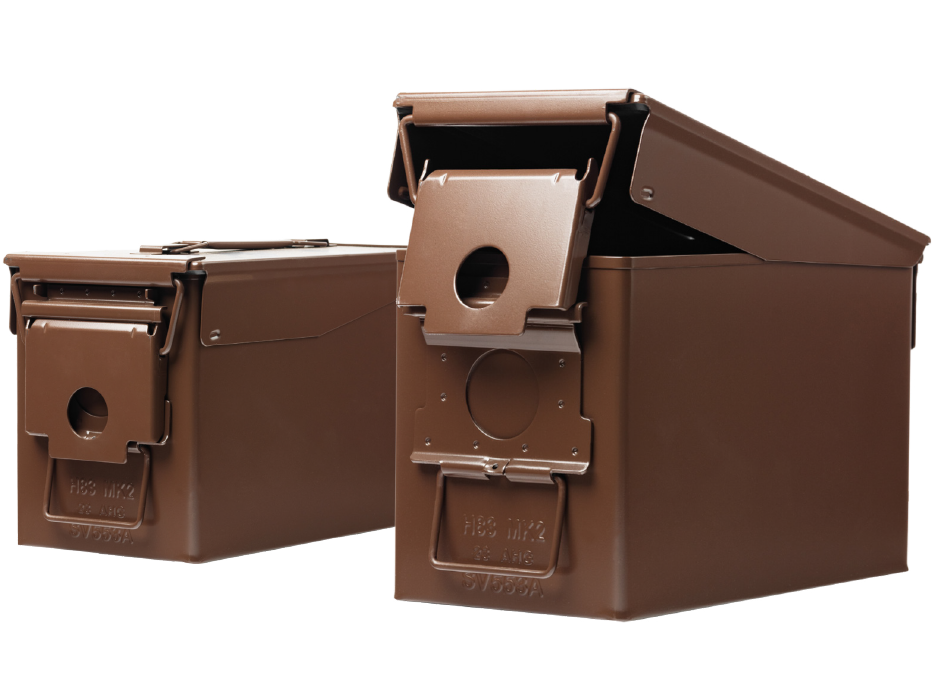

SPECIFICATIONS:
|
|
|---|---|
|
INTERNAL LENGTH
|
11.00” MIN
|
|
INTERNAL DEPTH
|
6.97” MIN
|
|
INTERNAL WIDTH
|
5.562” MIN
|
|
EXTERNAL LENGTH
|
12.008” MAX
|
|
EXTERNAL WIDTH
|
6.10” MAX
|
|
EXTERNAL HEIGHT
|
7.362” MAX
|
|
UK MOD DRAWING NO.
|
SV553A
|
|
SPECIFICATION
|
L9994
|
|
COATING
|
WET PAINT IAW L9994
|
|
PRE-TREATMENT
|
ETCHING PRIMER OR ZINC PHOSPHATE
|
|
COLOUR
|
BS-499 SERVICE BROWN
|
|
GASKET SPEC
|
CHLOROPRENE RUBBER TO BS2752
|
|

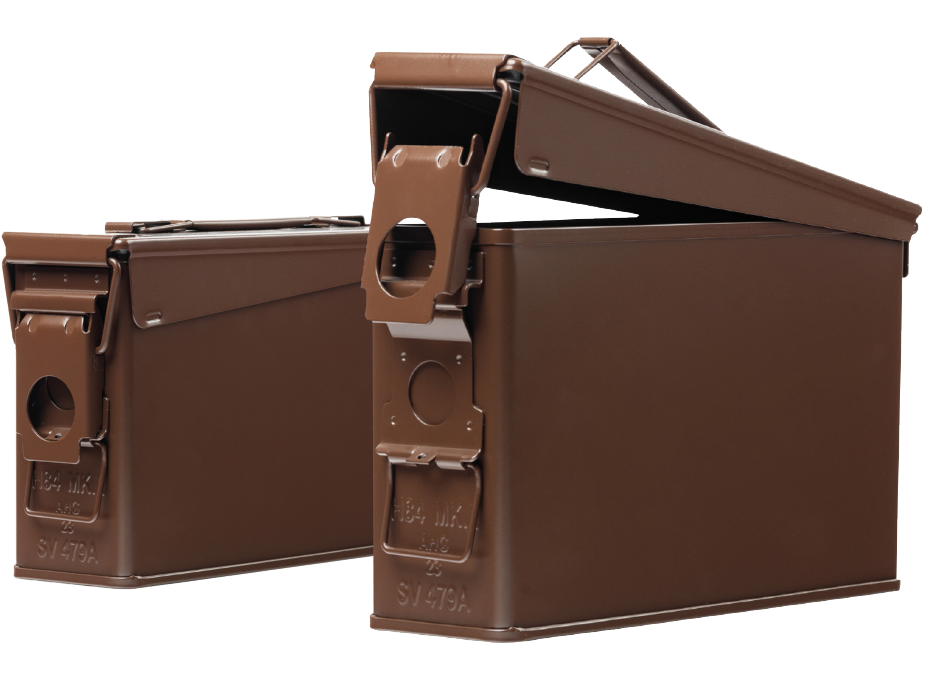

SPECIFICATIONS:
|
|
|---|---|
|
INTERNAL LENGTH
|
10.11” MIN
|
|
INTERNAL DEPTH
|
6.15” MIN
|
|
INTERNAL WIDTH
|
2.89” MIN
|
|
EXTERNAL LENGTH
|
11.06” MAX
|
|
EXTERNAL WIDTH
|
3.27” MAX
|
|
EXTERNAL HEIGHT
|
6.89” MAX
|
|
UK MOD DRAWING NO.
|
SV479A
|
|
SPECIFICATION
|
L9994
|
|
COATING
|
WET PAINT IAW L9994
|
|
PRE-TREATMENT
|
ETCHING PRIMER OR ZINC PHOSPHATE
|
|
COLOUR
|
BS-499 SERVICE BROWN
|
|
GASKET SPEC
|
CHLOROPRENE RUBBER TO BS2752
|
|

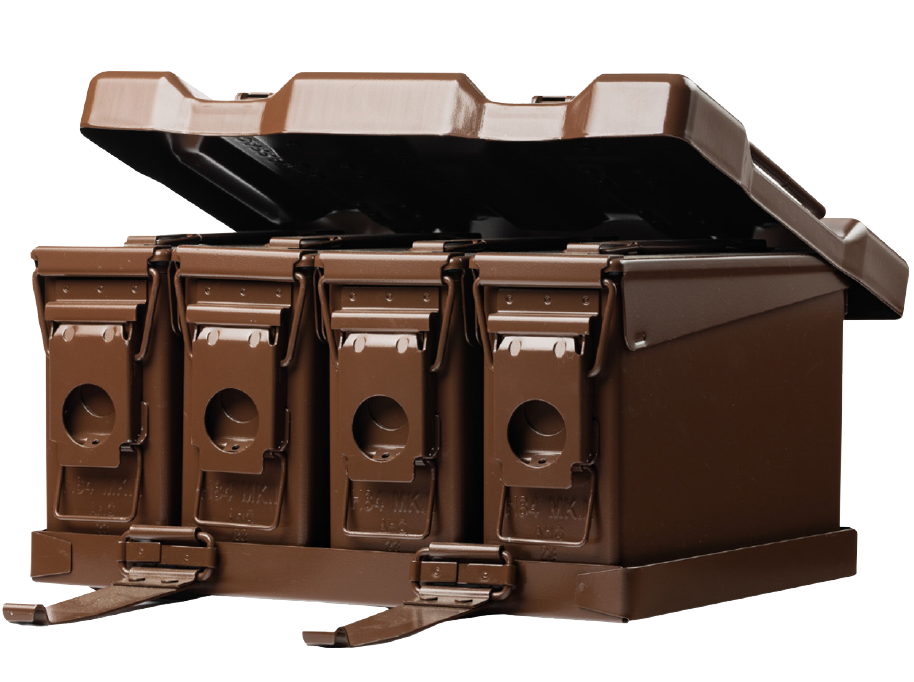

SPECIFICATIONS:
|
|
|---|---|
|
UK MOD DRAWING NO.
|
SV251SA
|
|
SPECIFICATION
|
L9994
|
|
COATING
|
WET PAINT IAW L9994
|
|
PRE-TREATMENT
|
ETCHING PRIMER OR ZINC PHOSPHATE
|
|
COLOUR
|
BS-499 SERVICE BROWN
|
